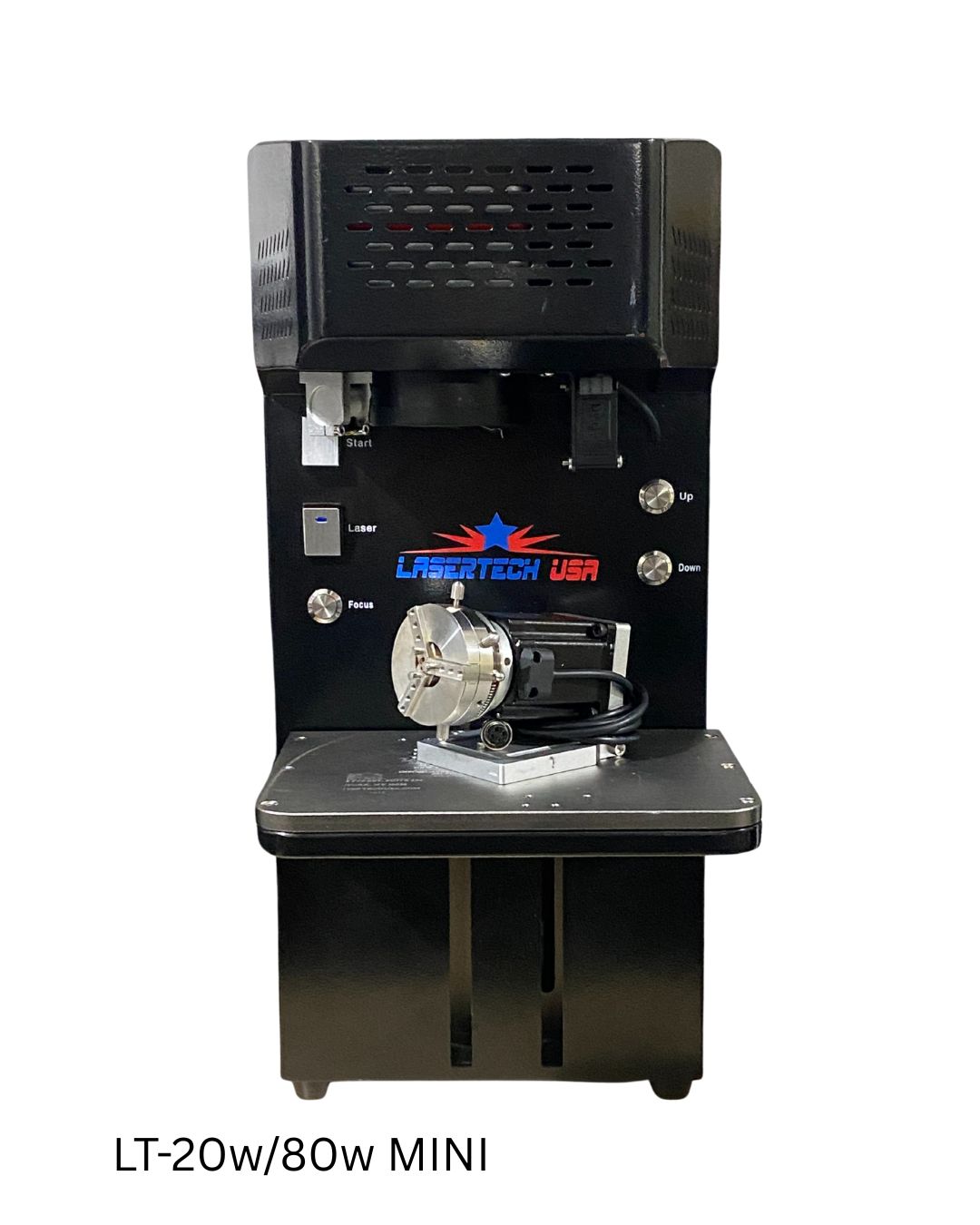

Mini 20W Laser Engraving

Mini 20W Laser Engraving

Our mini engraving machine is 20w laser power 110v electric at any US outlet.

Comes with One (1)  day training and Two (2) years’ warranty rotary for rings and bracelet automatic focusing system and built-in computer with software program (Computer is not covered in the two (2) years’ warranty).

Also available in Black.

Category:

Description

Technical Data:

Laser Power  20W Marking Depth 0~0.5mm
Laser Wavelength 1064nm +10nm Engraving Line Speed ≤ 7000mm/s
Q-Frequency 20KHz-200KHz Repeat accuracy ±0.001mm
Pulse Frequency  20KHz-200KHz Beam quality M2: 1.2~1.8
Divergence 0.3mard Marking format Graphics, text, bar code, two-dimensional code, automatically marking the date, batch number, serial number, frequency, etc.
Marking range 100*100mm Graphics format supported Bmp, jog, gif, tga, png, tif, ai, dxf, dst, plt, etc.
Minimum Line Width 0.01mm Working Voltage  110V 60Hz
Unit Power <0.5kW Machine Dimensions 18” W x 26” D x 26” H
Use of the environment Clean and dust free Packing size 1000mm x 820mm x 1100mm
Working condition: Humidity 5%-75%, fre of condensed water Net Weight 20 Kg
Laser module life >50000 hours
